Equipment Introduction

The Shearing-Punching Line is a core equipment for batch processing in sheet metal companies. It can customize non-standard equipment for industries like office furniture, kitchen & bathroom appliances, fire doors, etc. Relying on advanced shearing-punching technology, it solves the pain points of low efficiency, long cycle and poor adaptability of traditional manual processing, realizing efficient, flexible and scenario-based sheet metal shearing-punching production to meet enterprises' diversified processing needs.​

Product Advantages

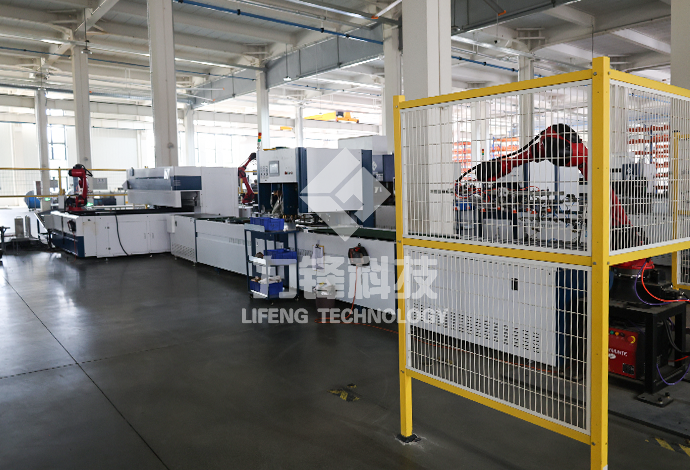

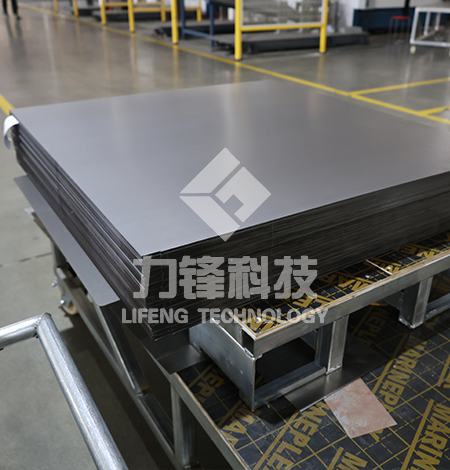

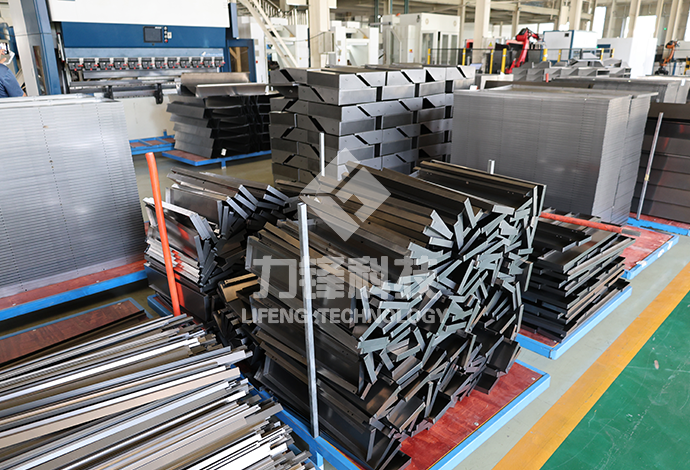

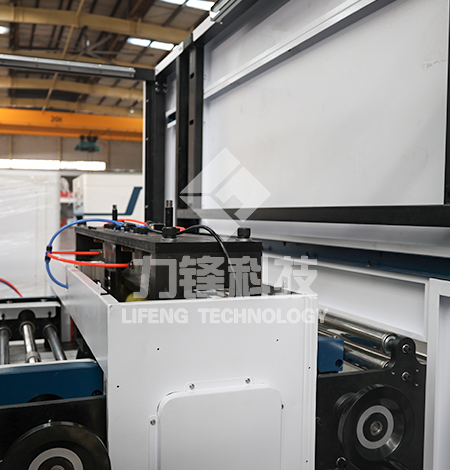

Product show

Working Principle

Efficient processing flow — After the CNC system receives parameter instructions, the feeding device accurately conveys sheet metal raw materials to the processing area, and the shearing-punching mechanism quickly completes shearing and punching actions under drive, realizing batch processing.​
Flexible parameter adjustment — According to different product processes, the CNC system automatically optimizes parameters like shearing-punching force and tool position, adapting to multi-category processing quickly without manual disassembly and adjustment.​
Scenario-based adaptation — In customized configuration, it adapts to complex processing scenarios by adjusting shearing-punching modules and optimizing conveying paths, ensuring stable and efficient operation of the equipment.

Specifications - Technical Data

Machine ModelLF-CJ-1300
Number of Dies6/8
Width Dimension1300mm
Material Thickness0.3-2mm
Production Speed0-40m/min
Product PrecisionTrim 0.1mm

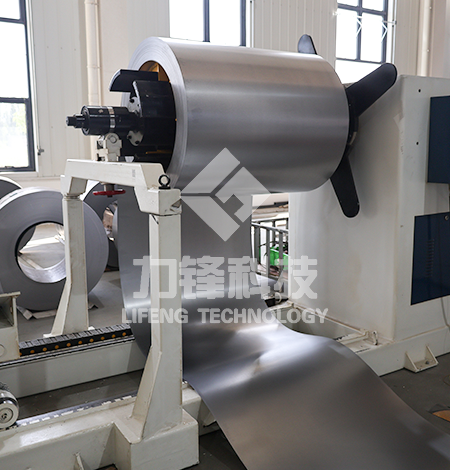

Uncoiler / DecoilerHydraulic Expansion
Power Supply Requirement380v/50Hz
Hydraulic Power15kw
Hydraulic System Operating Pressure15MPa
