Equipment Introduction

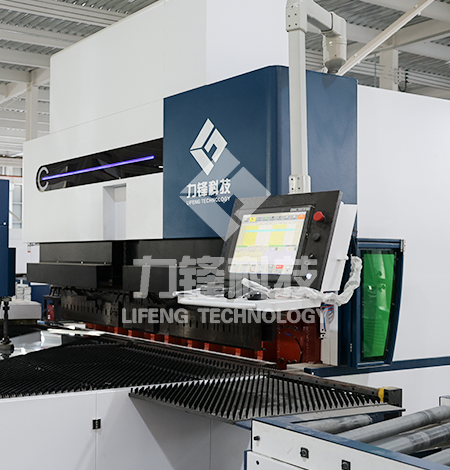

The Press Arm Flap Center is a high-efficiency sheet metal processing equipment designed specifically for sheet metal companies. It provides non-standard customization services for industries such as office furniture, kitchen and bathroom appliances, fire doors, medical equipment, auto-motorcycle parts, etc. Adopting a main frame welded with high-quality carbon steel plates and integrating high performance, automatic bending and flexible processing features, it solves pain points like unstable equipment, poor adaptability and short service life in batch production, enabling long-term high-speed and high-precision sheet metal bending.​

Product Advantages

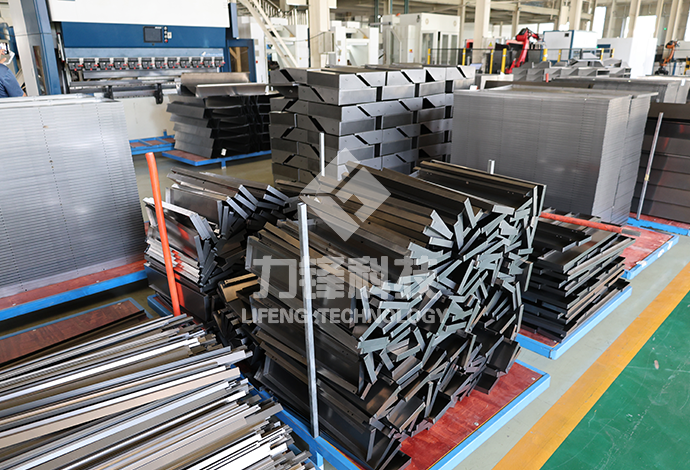

Product show

Working Principle

Stable processing foundation — The carbon steel plate welded frame provides solid support, ensuring no equipment deformation when the press arm and flap mechanism work, laying the foundation for high-precision processing.
Flexible and efficient processing — Universal molds automatically fit the workpiece geometry; after the CNC system controls the press arm to position the workpiece, it drives the flap mechanism to complete automatic bending, enabling batch production.
Long-term operation guarantee — The nitrogen balance system balances the spindle load in real time, reduces servo motor wear, ensures long-term high-speed and high-precision operation of the equipment, and forms an automated "positioning-bending-unloading" process.​​

Specifications - Technical Data

Machine ModelLF-P-2100
Feeding MethodPress Arm Type
Maximum Bending Size2100x1500mm
Maximum Bending Height170mm
Minimum Single-Side Forming Size210mm
Bending Angle (°)0-180°
Standard Axis Count12-15Axes
Loading DeviceOptional Selection
Unloading DeviceOptional Selection
Rated Voltage380v/50Hz
Hinge CutterOptional Selection
Standard Bending ThicknessStainless Steel (0.3-1.2mm)、Cold-Rolled Steel Plate (0.3-1.5mm)、Aluminum Plate (0.3-2.0mm)

More applications

Customized Production Line Design, Full-Lifecycle Service Guarantee From Solution to Implementation, Empowering Enterprises to Reduce Costs, Boost Efficiency, and Achieve Zero Risks!

OFFICE FURNITURE

TOOL CABINET

MEDICAL DEVICES

Customer Cases

Customized Production Line Design, Full-Lifecycle Service Guarantee From Solution to Implementation, Empowering Enterprises to Reduce Costs, Boost Efficiency, and Achieve Zero Risks!

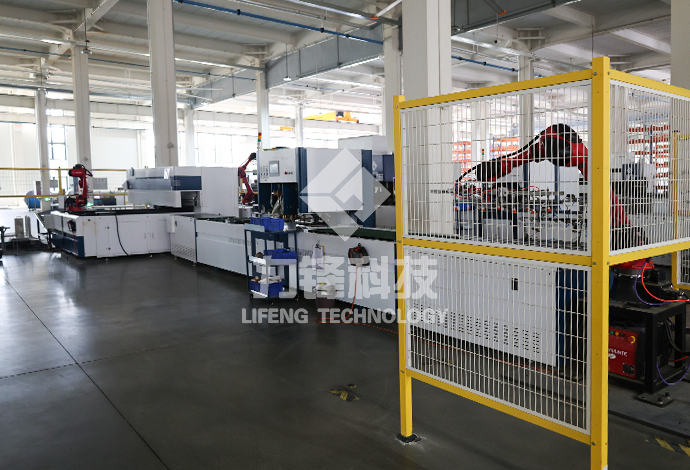

Core Configuration and Production Process of Sheet Metal Punching & Shearing Production Line

Core Configuration and Production Proces...
Core Configuration and Production Process of Medical Furniture Sheet Metal Production Line

Core Configuration and Production Proces...
Reserve project inspection View more cases
